B Series 15-inch Lathe CNC System (Vertical)
B0x-NX5A1V-T6

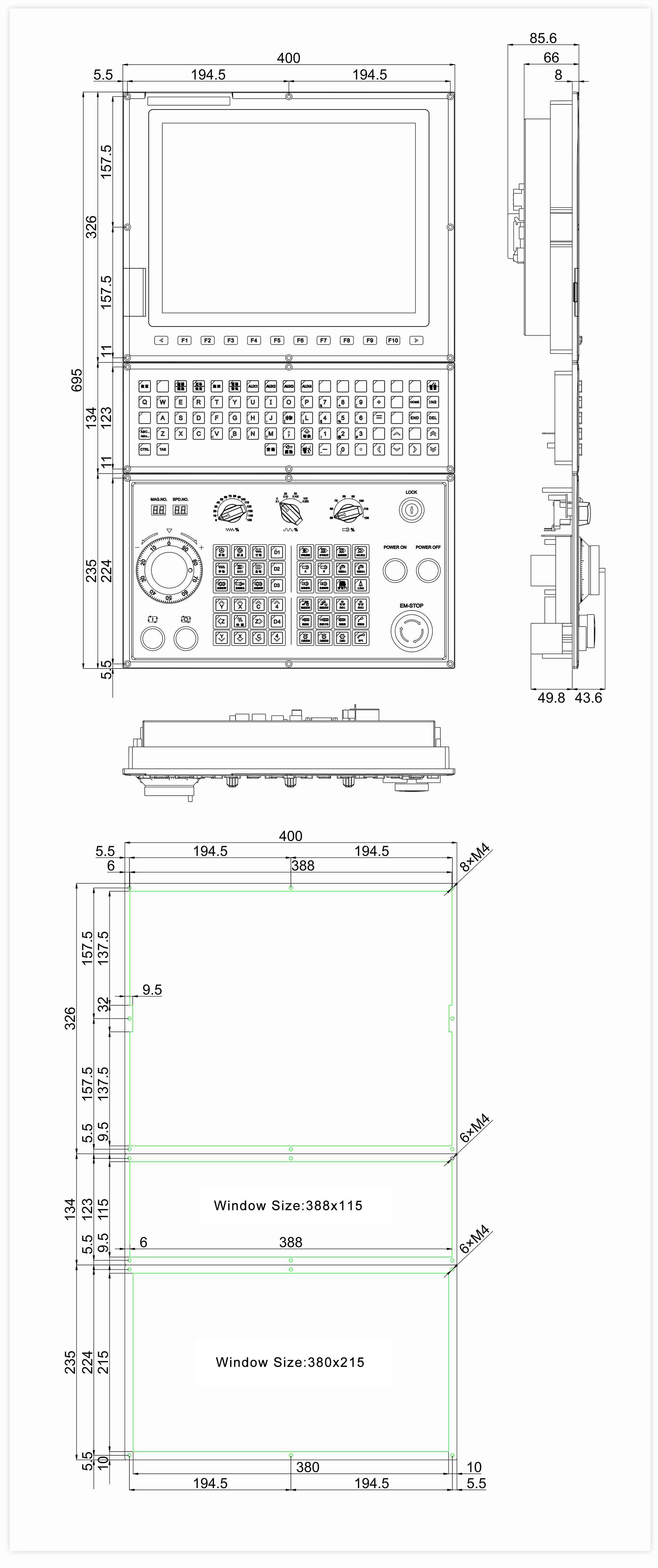

Follow frequency：次
Product type：B0x-600T Series
Follow frequency：次
Product type：B0x-600T Series
Name | B01-600T Series | ||
B01-600TA | B01-600TB | ||
System Specifications | Common Models | B01-NX2A1H-T6 / B01-NX2A1V-T6 / B01-NX4A1H-T6 / B01-NX4A1V-T6 / B1-NX5A1V-T6 | |
Installation Method | Horizontal/Vertical | ||
Maximum Axis Count (Including Main Spindle, Optional) | 6 | 6（8） | |
Maximum Channel Count (Optional) | 1 | 2 | |
Maximum Linked Axis Count per Single Channel | 4 | ||
Maximum Main Spindle Count per Single Channel | 3 | ||
Display Screen Size | 8.4/10.4/15 Inches | ||
Application Scenarios (Axial Distribution） | Single Channel: XYZABC Dual Channel: XZAC*2 Dual Channel: XZAC+X1Y1Z1A1 (Gantry) | ||
DA/AD | Optional Expansion | ||
Operating System | RT Linux | ||
Memory | 2GB | ||
Program Capacity | 8GB | ||
Prefetch Word Count | 4000 Block/S | ||
Maximum Tool Compensation Groups | 160 Groups | ||
Transmission | USB/RS485/LAN/WIFI | ||
Bus Servo | MECHATROLINK-III, EtherCAT Bus | ||
Bus Spindle | Supported | ||
Standard I/O | Bus Axis Card (Including 2 Pulse Ports): I24/O16 Bus IO (Excluding Pulse Ports): I16/O16 | Bus Axis Card (Including 2 Pulse Ports): I24/O16 Bus IO (Excluding Pulse Ports): I32/O32 | |
Maximum Expandable I/O | I128/O128 | ||
IoT Industrial Internet of Things | Supported | ||
Absolute Value Function | Supports MECHATROLINK-Ⅲ、EtherCAT、RS485、SSI Absolute Value (Optional) | ||
Program Functionality | Programming Instructions (G-codes) | Adherence to International Standards | |
Macro Program Coding Standard | Supported(Macro B、Macro C) | ||
Background Programming | Supported | ||
Conversational Intelligence | Supported | ||
Program USB Transfer | Supported | ||
Automatic Program Error Checking | Supported | ||
Program Lock Feature | Limited Program Editing (Optional) | ||
Synchronous Axes Control | Simultaneous Main Spindle Threading | Supported | |
Dual-Channel Main Spindle Synchronization | Supported | ||
Axis Coupling / Swapping / Blending | Supported | ||
Robotic Arm | Independent Control of Robotic Arm Channels | Supported | |
Tool Changer | Servo Tool Changer | Supported | |
System Axis-Controlled Tool Changer | Supported | ||
High-Speed and High-Precision | Dynamic Positioning of Main Spindle (C-Axis) | No Need to Stop for Switching Modes; Direct Positioning Execution (Requires Servo Main Spindle) | |
Rapid Retraction of Tool for Tapping | Supported | ||
Continuous Mode Between Segments | Supported | ||
Full Closed-Loop Control Function | Supported (Closed-Loop Speed Control with AB Phase Feedback, SSI Feedback - Optional) | ||
Compensation Function | Taper Compensation | Supported | |
Reverse Backlash Compensation | Supported | ||
Corner Radius Compensation | Supported | ||
Bidirectional Screw Error Compensation | Supported | ||
Feedforward Compensation | Supported | ||
Cooling and Heating Temperature Compensation | Supported | ||
Auxiliary Function | Custom Boot Screen | Supported | |
Custom M Codes | Supported | ||
Custom G Codes | Supported | ||
Mixing Bus Axes with General Purpose Axes | Supported | ||
IO Redefinition Function | Supported | ||
Tilted Axis Machining | Supported | ||
Tilted Plane Machining | Supported | ||
DNC Machining | Supported | ||
Proportional Scaling | Supported | ||
Acceleration-Deceleration Type | Linear Type (Constant Acceleration), S-Curve Type (Constant Jerk) | ||
Tool Life Management | Time Limitation / Count Limitation Management | ||
Protection Function | Safety Door, Hard Limits, Soft Limits, Unclamped Chuck Detection, Tool Changer Detection | ||
Handwheel Predictive Control | Support for Handwheel Prediction/Handwheel Retraction Function | ||
Handwheel Interruption | Supported | ||
Restart Function | Automatic Program Breakpoint Recovery and Customized Restart | ||
Multi-Function Handwheel | Supported | ||
Graphic Simulation | Graphic Preview Before Program Execution, Dynamic Plotting During Program Execution | ||
Authority management | Parameter Authorization Management | ||
Perpetual Calendar Locking Mechanism | Supported | ||
Axial Load Monitoring | Supported | ||
Oscilloscope Monitoring | Real-time Monitoring of System Commands and Servo Feedback Waveforms | ||
Following Error Detection | Supported | ||
Spindle Speed Reach Detection | Supported | ||
Data Backup | Program Backup, Parameter Backup, Tool Compensation Backup | ||
Cutting Function | Parabolic Interpolation | Supported | |
Ellipse Interpolation | Supported | ||
Cylinder Interpolation | Supported | ||
3d Circular Arc Interpolation | Supports Spherical Interpolation in Arbitrary Three-Axis Cartesian Coordinate Systems | ||
Polygon Cutting (fly Cutting) | Supported | ||
Polar Coordinate Interpolation | Supported | ||
Thread Tapping | G84/G88 (Supports Inclined Tapping) | ||
Thread Cutting | Supports Thread Cycle Turning, Multi-Start Threads, Circular Threads, Inclined Threads, Variable Pitch Threads, and other Turning Operations | ||
Chipping Breakage Turning | Supports Second-Generation (Linear, Circular, Thread Chip Breaking) | ||
Programmable Tailstock | Programmable Tailstock | Not Supported | |
