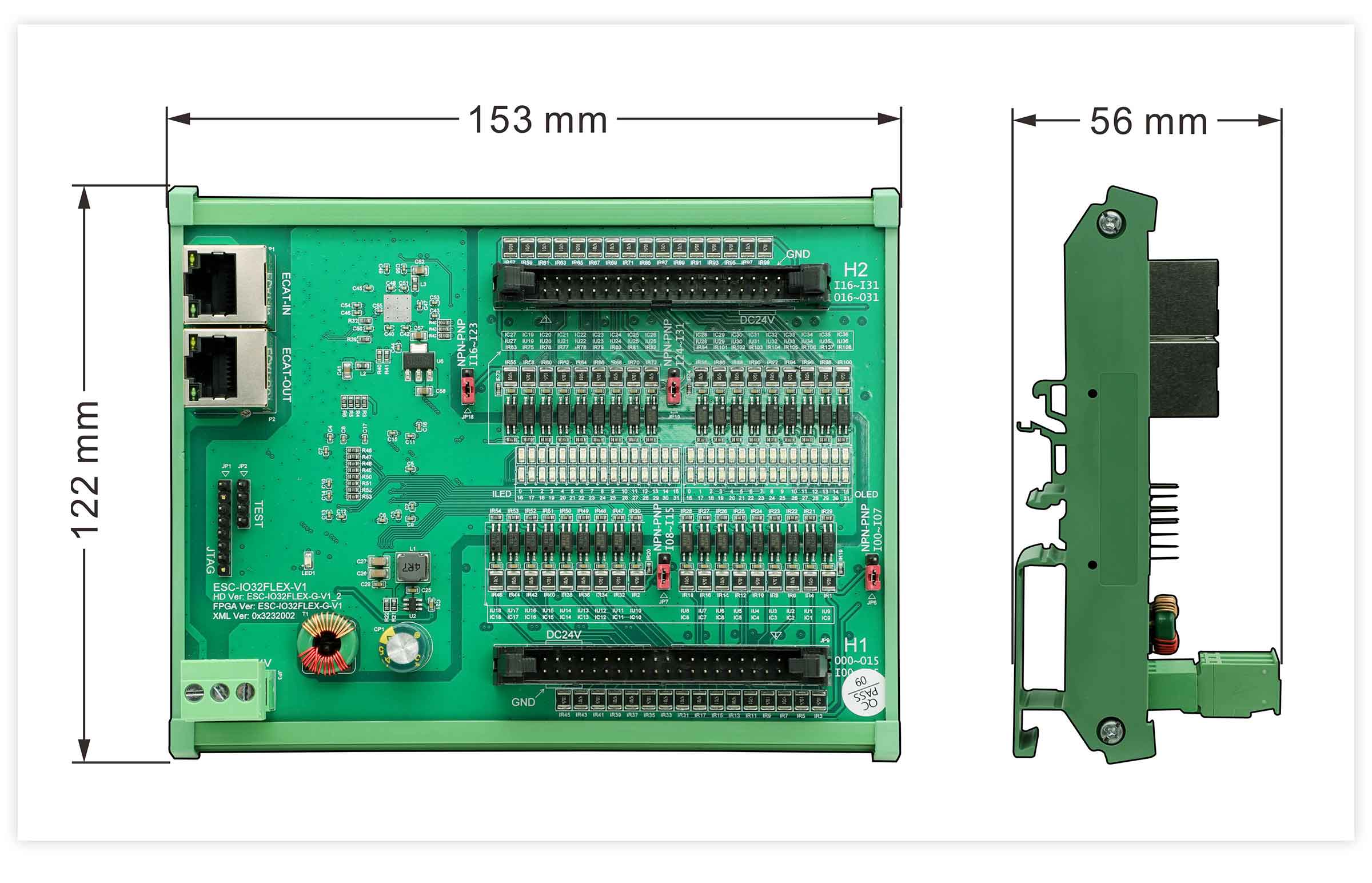

EtherCAT Compact 32-Point Input/32-Point Output (Transistor) IO Module
ESC-IO32FLEX-V1
Follow frequency:次
Product type:EtherCAT Module
Follow frequency:次
Product type:EtherCAT Module
DC24V Power Input (5.08 PITCH)
Provides Power Reverse Protection
32 INPUT:
2-wire input type INPUT, maximum 10mA current drive
3-wire input type INPUT, current provided by external power supply
INPUT provides single-point ESD protection
32 OUTPUT:
Optocoupler isolation, FET output
Provides single-point maximum 1A continuous output (instantaneous maximum allowable 9A)
Supports inductive load
EFT Test: Coupling 3kV, Power 3kV
Detachable European standard 5.08 PITCH terminal block
40-pin horn socket, anti-insertion design
