B Series 8-inch Milling Machine CNC System (Horizontal)
B0x-NX2A1H-M6
Follow frequency：次
Product type：B0x-600M Series
Follow frequency：次
Product type：B0x-600M Series
Name | B01-600M Series | ||||
B01-NX2A1H-M6 | B01-NX4CV-M6 | B01-NX4A1H-M6 | B01-NX4A1V-M6 | ||
System Specifications | Maximum Supported Channels | 1 | 2 | 2 | 1 |
Maximum Axis Count (Single Channel) | 6 | 6 | 6 | 6 | |
Maximum Linked Axis Count (Single Channel) | 6 | 6 | 6 | 6 | |
Maximum Spindle Count | 3 | 3 | 10 | 10 | |
Maximum Expandable Axis Count | 16 | 16 | 40 | 40 | |
Display Screen Size | 8-Inch Horizontal | 10.4-Inch Vertical | 10.4-IncH Horizontal | 10.4-Inch Vertical | |
DA/AD | Optional | ||||
Operating System | RT Linux | ||||
Memory | 2GB | ||||
Program Capacity | 8GB | ||||
Preload Word Count | 2000b/s | ||||
Minimum Control Unit | 0.00001mm | ||||
Maximum Tool Compensation Groups | 160 Groups | ||||
Transmission | USB/RS485/LAN/WIFI | ||||
Bus Functionality | MECHATROLINK-Ⅲ/EtherCAT | ||||
Absolute Value Functionality | Supported: M-III, EtherCAT, MODBUS 485, SSI Absolute Encoder | ||||
Maximum Expandable I/O | 128-Point IO | ||||
Industrial Internet of Things (IIoT) | Supported | ||||
Program Functionality | International Standard for Machining Programs (G-code) | Supported | |||
Macro Programming Standard | Macro B/C | ||||
Background Programming | Supported | ||||
Conversational Intelligent Programming | Supported | ||||
Program USB Transfer | Supported | ||||
Program Auto Error Checking | Supported | ||||
Program Locking Feature | Limited Program Programming (Optional) | ||||
Compound Functionality | Multi-Channel Functionality | (Optional) 16 channels | |||
Back Spindle Functionality | Supported | ||||
Multi-Spindle Tapping | Maximum support for simultaneous tapping with 10 spindles | ||||
Axis Coupling/Swapping/Blending Functionality | Supported | ||||
Independent Channel Control Module for Robotic Arm | (Optional) Use G-code for path planning. | ||||
High Speed and High Precision | Dynamic Positioning of Spindle (C) Axis | Seamless Switching and Direct Positioning Execution Without Stopping (Requires Servo Spindle) | |||
Continuous Motion Mode Between Program Segments | Supported | ||||
CONSTANT JERK Control | Supported | ||||
Automatic Cornering Control | Supported | ||||
Circular Arc Radius Speed Limitation | Supported | ||||
NURBS Fitting | Supported | ||||

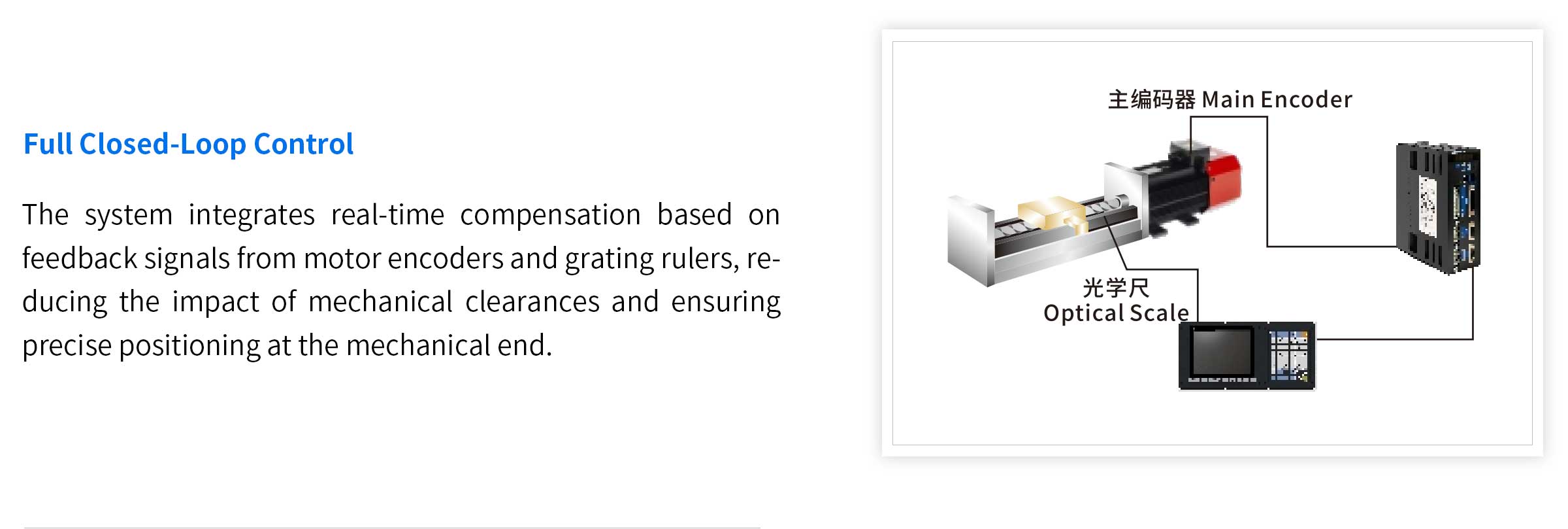

Full Closed-Loop Control Functionality | Closed-loop speed control, closed-loop bus control | ||||
Compensation Functionality | Taper Compensation | Supported | |||
Backlash Compensation | Supported | ||||
Arc Corner Compensation | Supported | ||||
Bidirectional Screw Error Compensation | Supported | ||||
Feedforward Compensation | Supported | ||||
Tilted Plane | Tilted Axis Machining | Supported | |||
Tilted Plane Machining | Supported | ||||

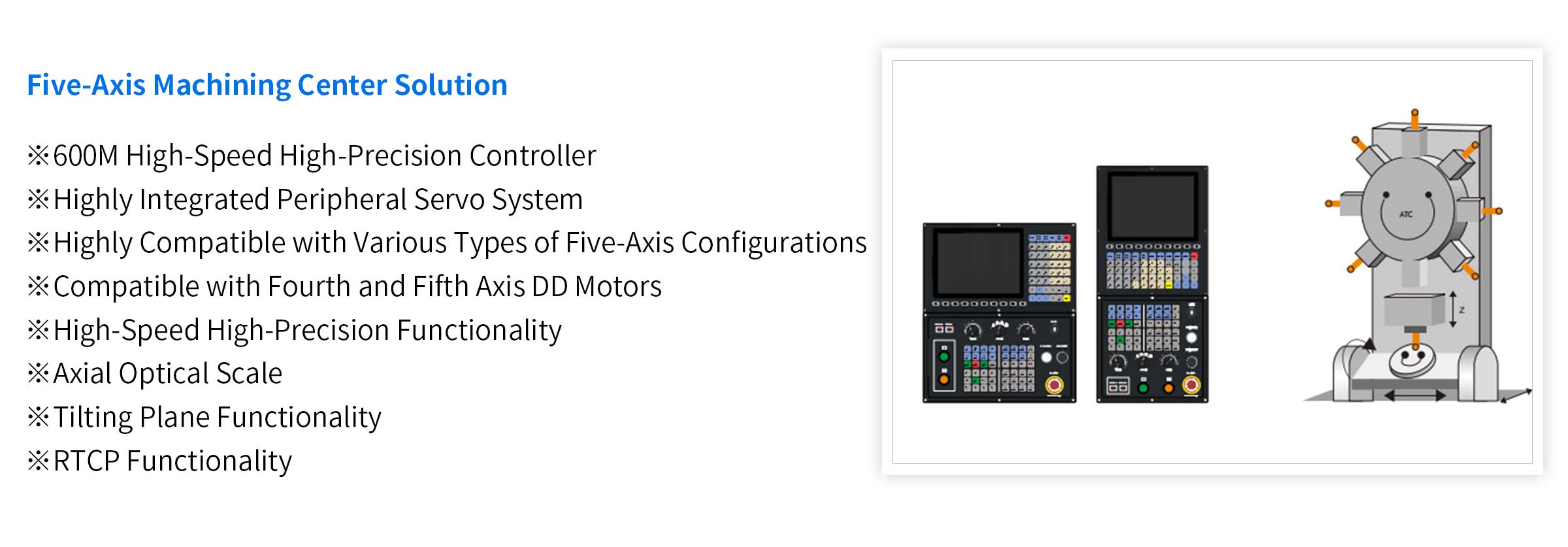

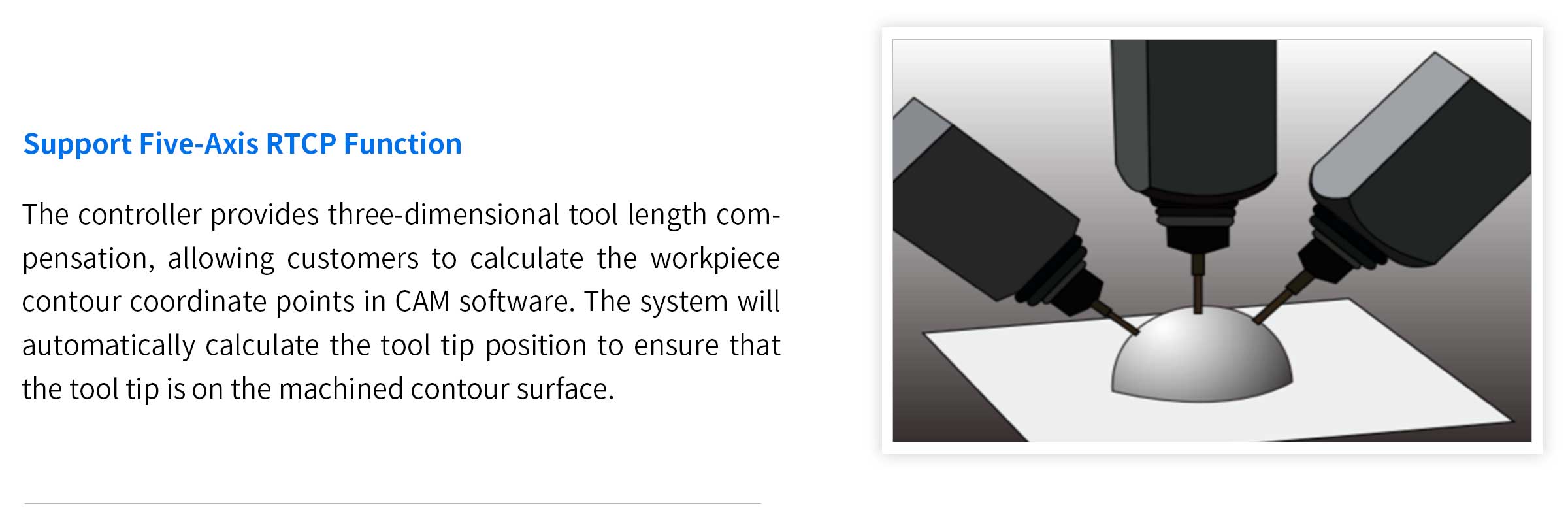

5-Axis Functionality | 5-Axis Tool Tip Point Control (RTCP) | Supported | |||
Smooth Tool Tip Control (Smooth TCP) | Supported | ||||
Auxiliary Functionality | Custom Boot Screen | Supported | |||
Custom M-code | Supported | ||||
Custom G-code | Supported | ||||
Bus Axis and General Axis Co-Control | Supported | ||||
IO Redefinition Functionality | Supported | ||||
DNC Machining | Supported | ||||
Scale Proportional | Supported | ||||
Acceleration and Deceleration Type | Linear Type (Supports JERK), S-Curve, Exponential | ||||
Tool Life Management | Time Limit, Count Limit Management | ||||
Protection Functionality | Safety Door, Hard Limits, Soft Limits, Unclamped Chuck Detection, Tool Changer Detection | ||||

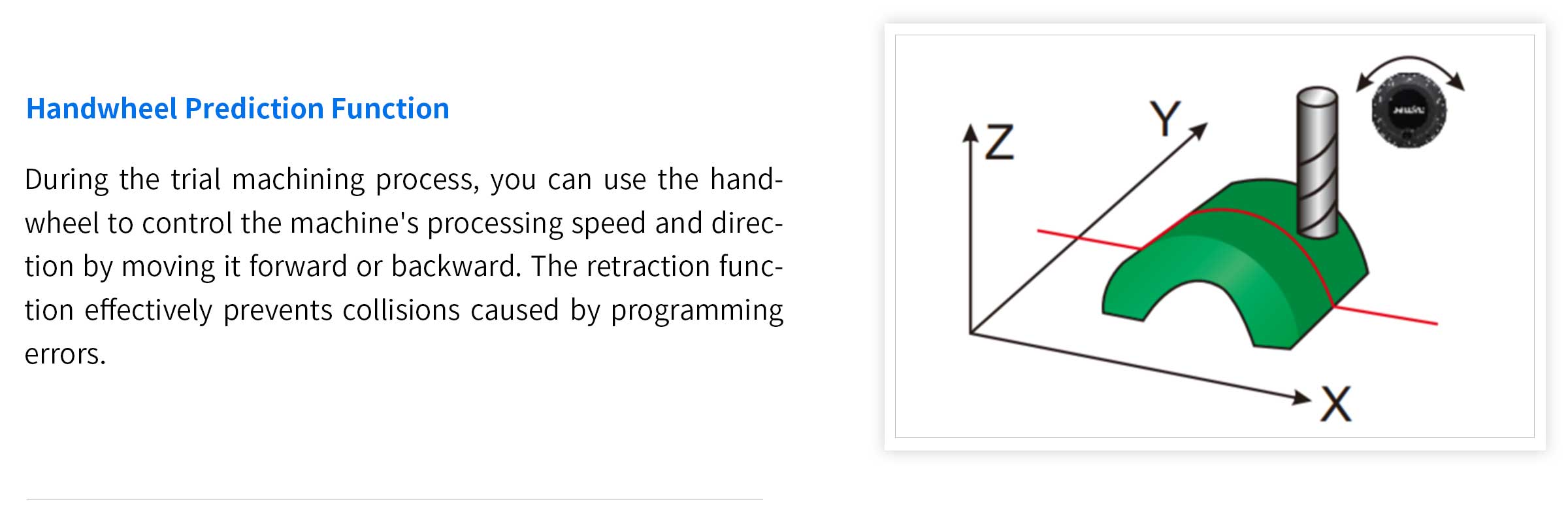

Handwheel Prediction | Handwheel Prediction, Handwheel Retraction Function | ||||
Handwheel Interruption | Supported | ||||
Rapid Retraction of Tool for Tapping | Supported | ||||
Restart Functionality | Automatic Program Breakpoint Recovery, Customized Restart | ||||
Multi-Function Handwheel | Supported | ||||
Graphical Simulation | Graphical Preview Before Program Execution, Dynamic Plotting During Program Execution | ||||
Authority management | Parameter Authorization Management | ||||
Calendar Lock | Supported | ||||
Axial Load Monitoring | Supported | ||||

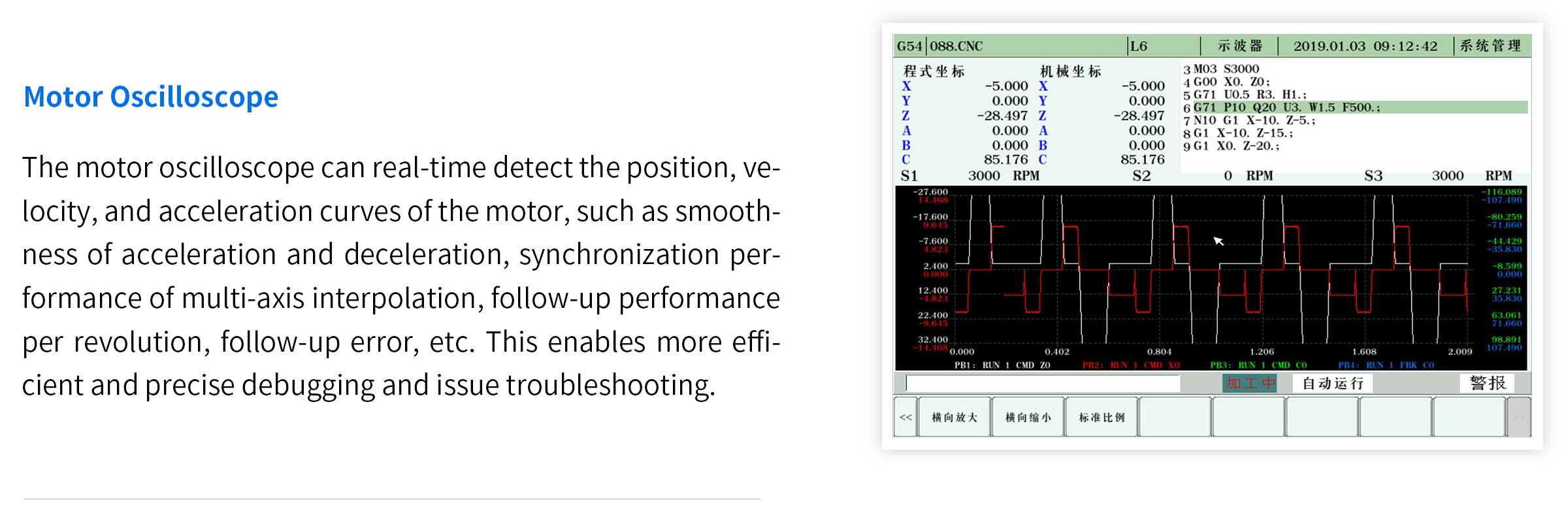

Oscilloscope Monitoring | Real-time Monitoring of System Commands and Servo Feedback Pulse Waveforms | ||||
Follow Error Detection | Supported | ||||
Spindle Speed Reach Detection | Supported | ||||
Diverse Tool Library | Disk-type Tool Library, Umbrella-type Tool Library, Customized Tool Library | ||||

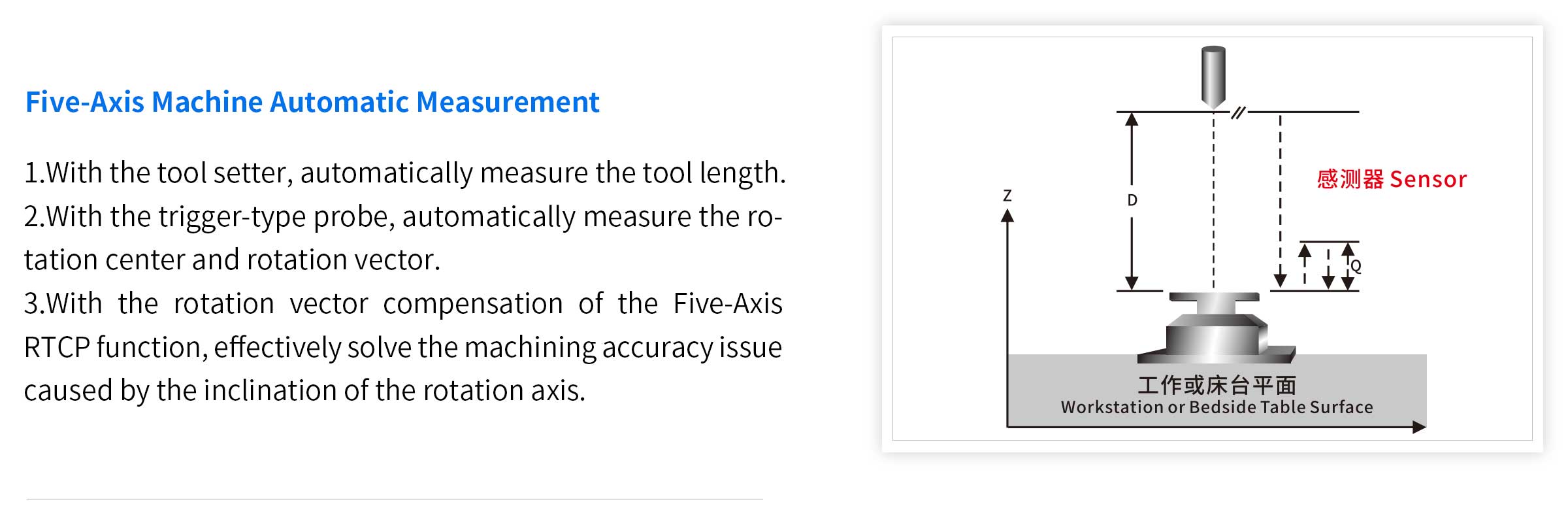

Automatic Tool Alignment | Supported | ||||
Data Backup | Program Backup,Parameter Backup,Tool Compensation Backup | ||||
G-code Instructions | High-Precision Trajectory Control Mode | Supported | |||
Path Smoothing Mode | Supported | ||||
NURBS Curve Interpolation | Supported | ||||
Thread Cutting | Supported | ||||
Tool Offset | Supported | ||||
High-Speed Peck Drilling Cycle | Supported | ||||
Left-Hand Tapping Cycle | Supported | ||||
Fine Boring Cycle | Supported | ||||
Drilling Cycle | Supported | ||||
Peck Drilling Cycle with Bottom Stop | Supported | ||||
Peck Drilling Cycle | Supported | ||||
Tapping Cycle | Supported | ||||
Drilling Cycle | Supported | ||||
High-Speed Drilling Cycle | Supported | ||||
Semi-Automatic Fine Boring Cycle | Supported | ||||
Peck Boring Cycle with Bottom Stop | Supported | ||||
Multiple Sets of High-Speed High-Precision Parameters | Supported | ||||
